Features
Lead-Free
Ultra Miniature SMD Tuning Fork Crystal Resonator
Plastic molded SMD tuning fork crystal of heat-resistance
Metal Lid Connected To GND Terminal To Reduce EMI
Suitable For Mobile Communications And Consumer Devices.
Applications
Mobile Communications And Consumer Devices, Etc.
Smart Card And Wearable Devices
Type :
AMTModel :
PMX406-LFPackage size :
10.4*4.06*3.6 mmFrequency :
32.768KHzSMD Tuning Fork Crystal 406(10.4*4.6*3.6mm) Lead-Free
406 size 32.768kHz Watch Crystal
Highly competitive price for Watch Quartz Crystals with 10.4 x 4.06 x 3.6mm. PMX406 also with excellent reliability performance. And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.
The MC-406 32.768K is a specific model of a quartz crystal resonator by Epson, a well-known manufacturer of electronic components. This component generates a clock signal with a frequency of 32.768 kilohertz (kHz) and is compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous materials in electronic products. It is also a product of A-Crystal production line, which can be completely replaced.

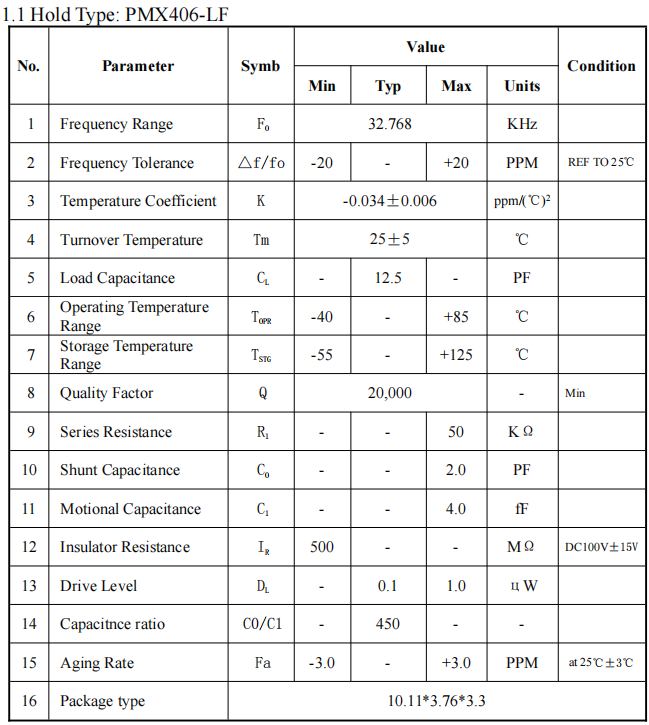

1.ELECTRICAL SPECIFICATIONS

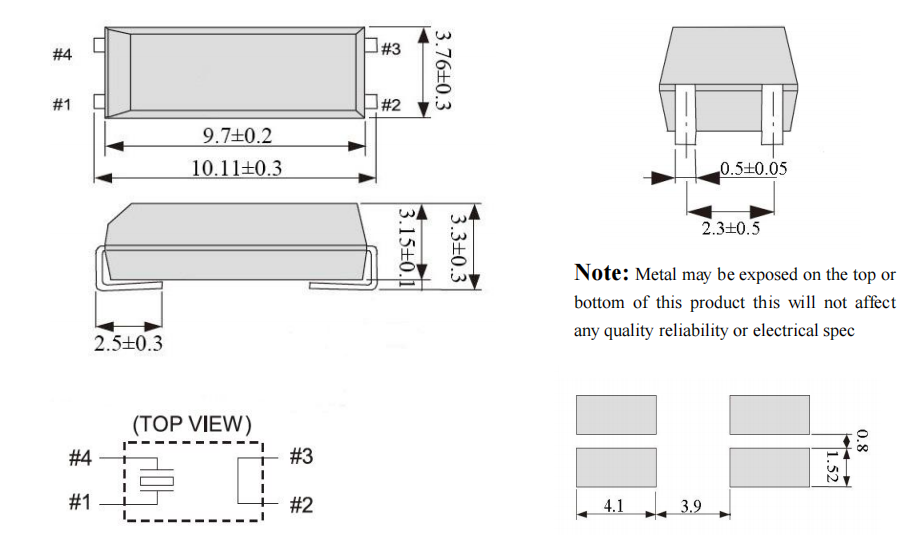

2. Dimension (Unit: mm)
3.For more FAQs and other services, please click on the image below to view.
4.Learn more about PMX406
SMD Tuning Fork Crystal PMX406 is a compact surface mount device (SMD) with a frequency of 32.768 kilohertz (kHz). It is commonly used in time keeping, synchronization and low power applications in modern electronic devices. This crystal oscillator has an ultra-small design with a plastic package and a metal cover connected to the GND terminal to reduce electromagnetic interference (EMI), suitable for mobile communications and consumer devices. PMX406 measures 10.4 x 4.06 x 3.6 mm and has excellent reliability performance, suitable for surface mount technology and infrared reflow soldering process. The main application areas include mobile communications and consumer devices, smart cards and wearable devices.
