Features
Lead-Free Models
Ultra Miniature SMD Tuning Fork Crystal Resonator
Plastic molded SMD tuning fork crystal of heat-resistance
Metal Lid Connected To GND Terminal To Reduce EMI
Suitable For Mobile Communications And Consumer Devices.
Pleatic molded SMD tuning fork crystal of heat-resistance
Conrrespond to automatic mounting and reflow soldering.
Applications
Mobile Communications And Consumer Devices, Etc.
Smart Card And Wearable Devices
Suitable for digital AV equpment,PC,gaming equpment as well as many other applications
Type :
AMQModel :
PMX206-LFPackage size :
8.0*3.8*2.5 mmFrequency :
32.768KHZSMD Tuning Fork Crystal 8038 (MC306, 32.768khz) Lead-Free Models
8038 size 32.768kHz Watch Crystal
Highly competitive price for tuning fork crystal oscillator with 8.0 x 3.8 x 2.5mm. PMX206 also with excellent reliability performance.
And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.
A 32.768 kHz quartz crystal is a specific type of crystal resonator that generates a clock signal at a frequency of 32.768 kilohertz (kHz).
This frequency is commonly used in various electronic devices for accurate timekeeping and synchronization.

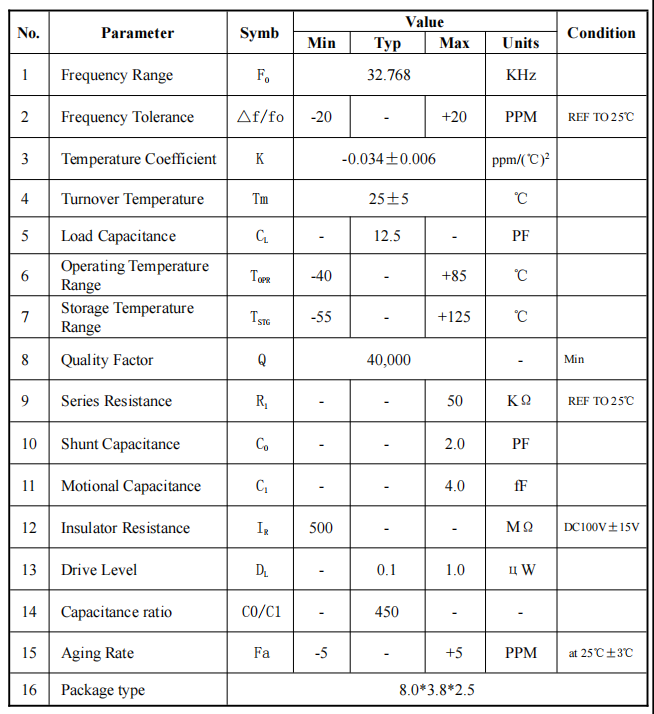

1.ELECTRICAL SPECIFICATIONS

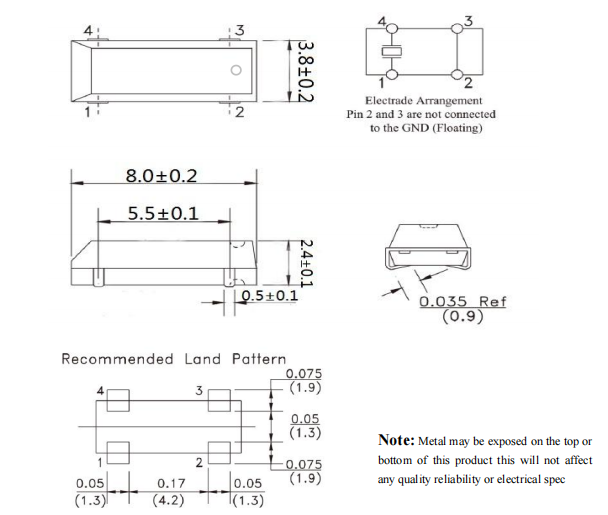

2. Dimension (Unit: mm)
3.For more FAQs and other services, please click on the image below to view.
4.Learn more about 8.0*3.8mm 32.768kHz Watch Crystal
PMX206 (8038) is a 32.768kHz SMD tuning fork crystal oscillator suitable for timekeeping and timing applications in low power and battery powered devices. The crystal oscillator has an ultra-small SMD package, a heat-resistant plastic molded case, and a metal cover connected to the ground terminal to reduce electromagnetic interference. It is suitable for mobile communications and consumer devices such as smart cards and wearable devices. The size of PMX206 is 8.0 x 3.8 x 2.5 mm, with excellent reliability and a variety of circuit condition options, suitable for surface mount technology and infrared reflow soldering process.
