Well-known overseas crystal oscillator brands discontinued production
Recently, a well-known overseas crystal oscillator brand announced the discontinuation of production of some packaged products, impacting some manufacturers. To avoid supply shortages and disruptions, domestic brands are now available that offer excellent alternatives to these overseas brands and have passed relevant testing by leading domestic companies.
New opportunities for domestic substitution
ZHEJIANG A-CRYSTAL ELECTRONIC TECHNOLOGY CO.,LTD. is a national high-tech enterprise focusing on the research and development, manufacturing and sales of high-end quartz crystal oscillators. We have been deeply engaged in the crystal oscillator field for many years. ZHEJIANG A-CRYSTAL’S Crystal Oscillators have met the parameter requirements of overseas crystal oscillator brands.
Crystal oscillator brand comparison table
| Size (mm) | KDS | Seiko | EPSON | Citizen | Micro crystal | A-CRYSTALS | |||
| 3.0*8.0 (Through Hole) | DT-38 | VT-308 | C-001R | CFS-308 | DS38 | DTLF308 | |||
| 2.0*6.0 (Through Hole) | DT-26 | VT-200-F | C-002RX | CFS-206 | DS26 | DTLF206 | |||
| 12.5*4.6*3.7 | - | - | MA-406 | CM309S | - | PMX308 | |||
| 8.0*3.8*2.5 | DMX-26S | SPA-T2-F | MC-306 | CM200C | CC1V-T1A (2pin) | PMX206 | |||
| 6.9*1.4*1.3 | - | SSP-T7-F | MC-146 | CM130 | MS2V-T1R | PMX145 | |||
| 4.8*1.9 | DST520 | - | FC-255 | CM519 | CC4V-T1A | PSX519 | |||
| 4.1*1.5*0.9 | DST410S | - | FC-145 | CM415 | CCSV-T1A | PSX415 | |||
| 3.2*1.5*0.9 | DST310S | SC-32S | FC-135 | CM315 | CC7V-T1A | PSX315 | |||
| 2.0*1.2*0.6 | DST210 | SC-20S | FC-12M | CM212 | CX8V-T1A | PSX215 | |||
Dual drive from policy and market

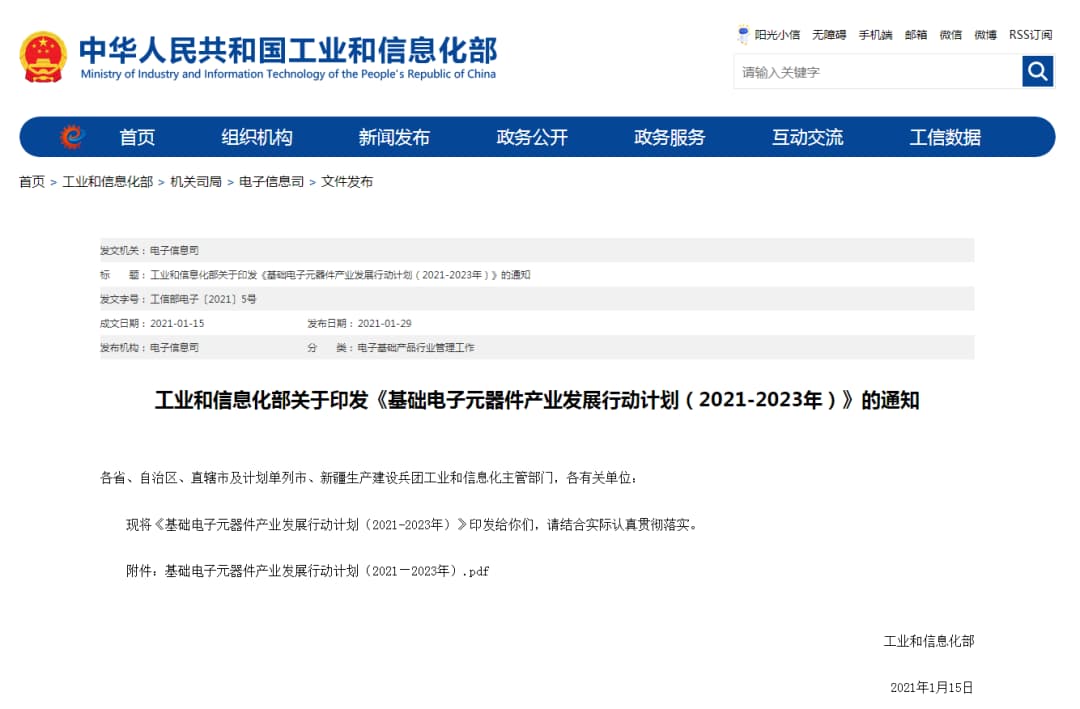

Domestic substitution has entered a period of policy dividends. The "Basic Electronic Components Industry Development Action Plan" issued by the Ministry of Industry and Information Technology for the first time elevates the high-quality development of the basic electronic components industry to a national strategic level.
Some drawings of Zhejiang A-Crystal's alternative products

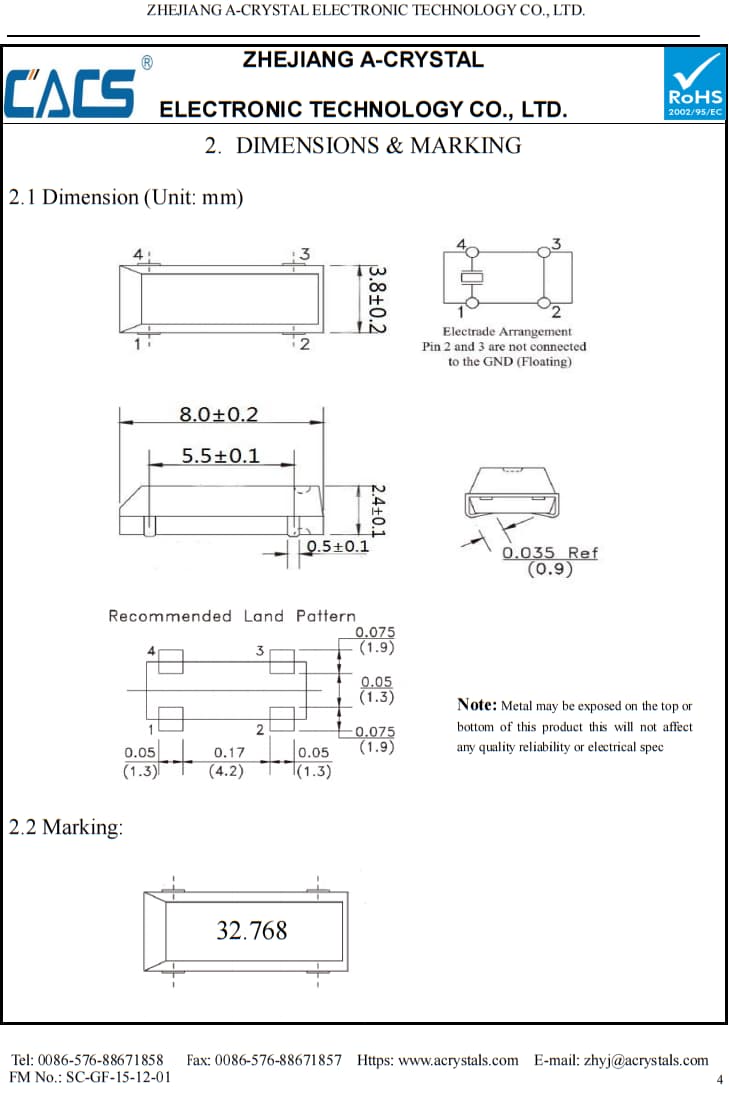

PMX206 / 8.0*3.8*2.5 / 32.768K

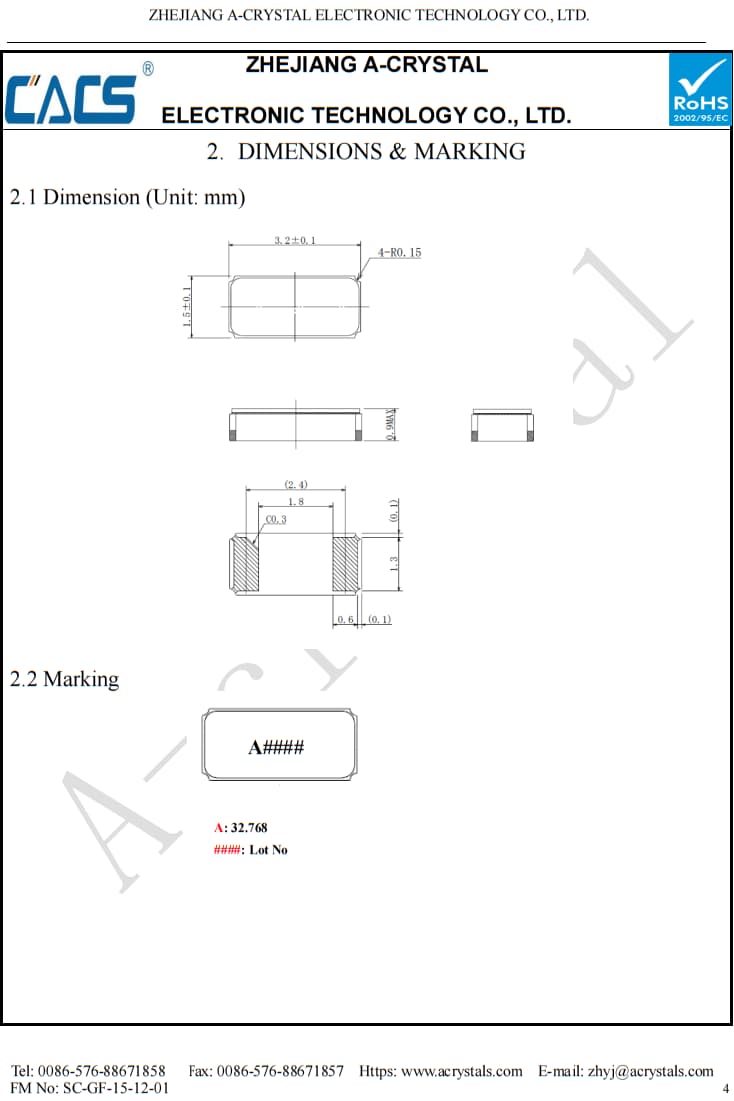

PSX315 / 3.2*1.5*0.9 / 32.768K

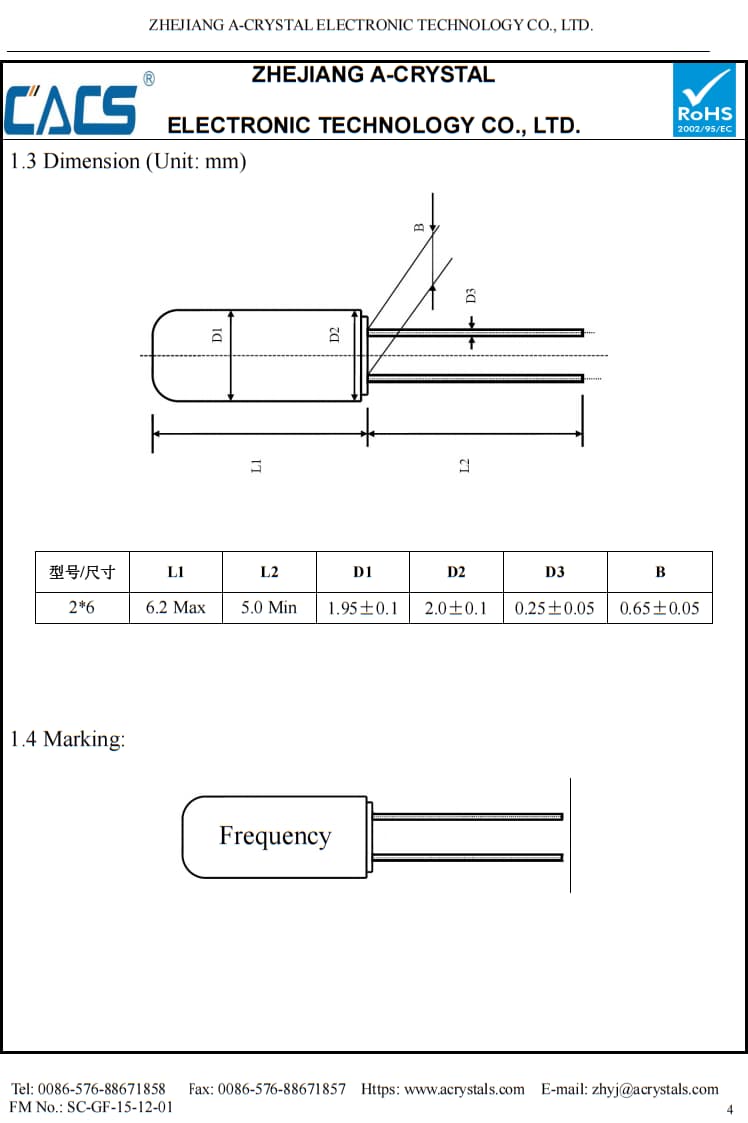

DTLF206 / 2.0*6.0（Through Hole） / 32.768K
