In electronic devices, the tuning fork crystal units serves as a core component for frequency control, and its package type directly influences circuit design and overall performance. The two mainstream packaging forms are through-hole (DIP) and surface-mount (SMD). DIP crystals, such as HC-49S, HC-49U, UM-1, and cylindrical types (e.g., 2×6 mm and 3×8 mm), use pinned leads for insertion into PCB holes. They are generally larger in size and offer high stability, making them suitable for applications like industrial control systems and communication base stations where space is not critical but reliability is essential.

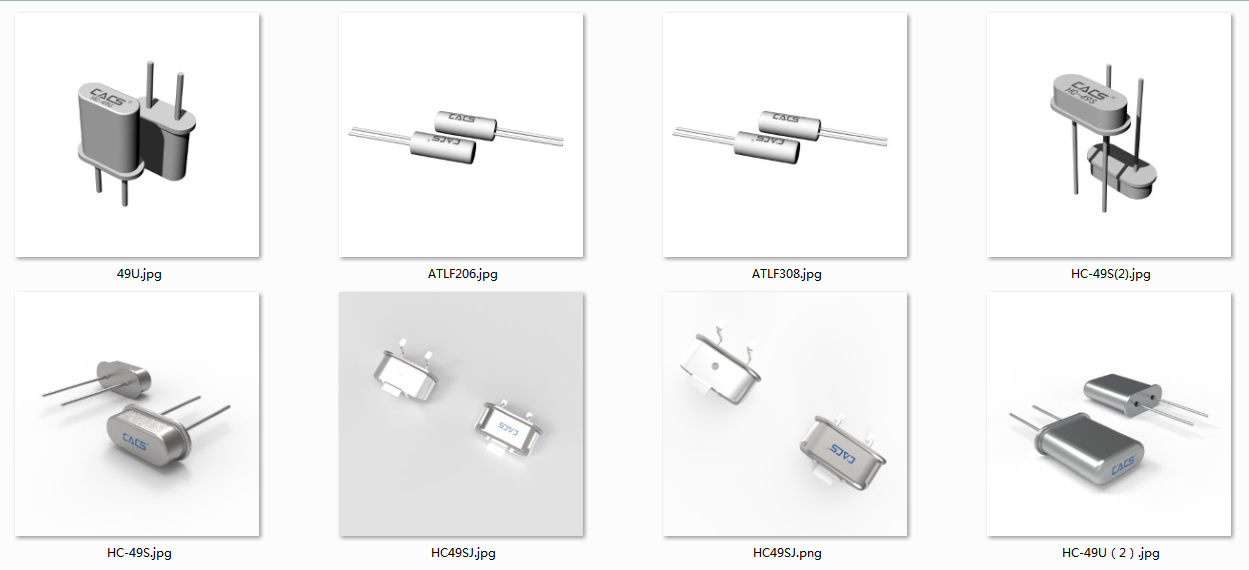

DIP Tuning Fork Crystal Units
In comparison, SMD crystals—including packages such as SMD1612, SMD3225, SMD5032, and SMD-Glass3225—utilize surface-mount technology (SMT) to achieve ultra-miniaturized footprints, with dimensions as small as 1.6×1.2 mm. These components are ideal for high-density electronic products such as smartphones, wearables, and IoT modules.
SMD Tuning Fork Crystal Units
From an assembly perspective, DIP crystals require through-hole insertion and are typically soldered using wave soldering or manual techniques. While not suitable for full automation, they allow easier repair and replacement. On the other hand, SMD crystals are compatible with fully automated pick-and-place and reflow soldering processes, significantly improving production efficiency and reducing costs for high-volume manufacturing.
In terms of mechanical and environmental robustness, the SMD package offers better resistance to vibration and shock due to its firm attachment to the PCB. This makes it a preferred choice for automotive electronics and portable devices demanding high reliability. Although DIP packages are more susceptible to physical stress in dynamic environments due to their longer leads, they remain popular for prototyping and low-volume production due to ease of handling.

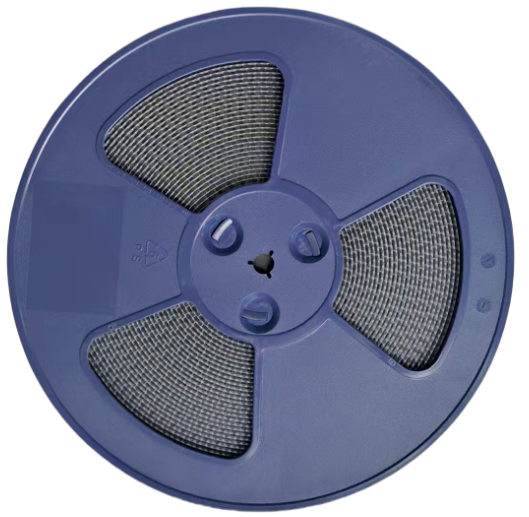

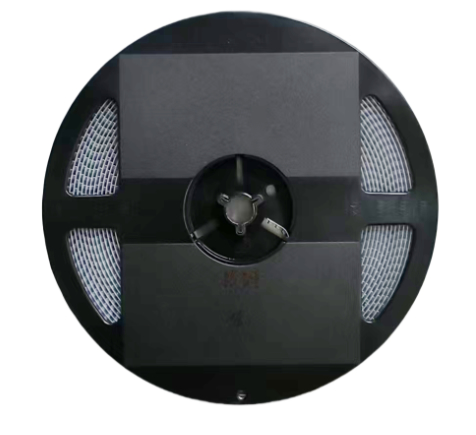

SMD Crystal Reel
In summary, selecting between SMD and DIP tuning fork crystal units should be based on package size, production process, operating environment, and cost requirements. SMD crystals are better suited for miniaturized, automated consumer electronics, while DIP crystals are often chosen for high-reliability industrial and special-purpose applications. As a professional crystal oscillator manufacturer, we supply a comprehensive range of DIP and SMD tuning fork crystals and can help recommend the optimal frequency control solution for your needs.
