Why Does an HC-49/U Crystal Need a Spacer? Core Functions & Common Frequency Solutions

During the debugging of Gigabit Ethernet equipment or high-end audio interfaces, engineers often encounter a precise challenge: an HC-49/U quartz crystal, nominally rated at 25.000MHz or 24.576MHz, shows a tiny frequency deviation, causing equipment to desynchronize or impairing audio quality. A cost-effective and common solution is placing a small spacer under the crystal's metal shell. This is not just a mechanical fix but a precise frequency-tuning process. So, what is the core purpose of adding a spacer to an HC-49/U crystal, and which frequencies most commonly require it?

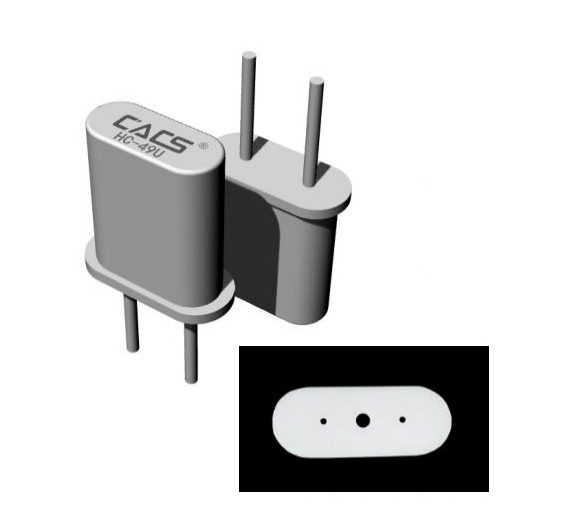

           HC-49/U Crystal with Spacer

Core Function  1: Precision Frequency Trimming for Strict Standards

The primary role of a spacer is  precision frequency micro-adjustment. The frequency of an HC-49/U crystal is highly sensitive to changes in its load capacitance. Adding an insulating spacer increases the distance between the quartz wafer and the metal base, thereby reducing the equivalent parallel capacitance. For a fundamental-mode crystal, this causes its resonant frequency to increase slightly(and vice-versa). By selecting spacers of different thicknesses, fine calibration at the ppm level is achievable.

This is critical in high-speed communication and high-precision audio applications.

For instance:

• 25.000MHz is standard for Gigabit Ethernet, which has extremely strict timing requirements.
• 24.576MHz is a standard frequency for professional audio equipment, where any deviation can affect sound quality.
• 3.6864MHz is often used for UART communication, requiring accurate baud rate generation.

The frequency accuracy demands in these applications far exceed those of ordinary circuits, making spacer installation an essential final-tuning step in the manufacturing process.

Core Function  2: Mechanical Protection for Enhanced Reliability

The internal quartz wafer of an HC-49/U crystal is very fragile. A spacer, typically made of an elastic material like silicone or rubber, acts as a shock absorber. It dampens external vibration and mechanical shock, preventing the delicate wafer from cracking under stress. Furthermore, it maintains a safe distance between the wafer and the conductive metal casing, preventing potential short circuits caused by casing deformation during assembly or transport. This significantly enhances the long-term reliability of the component, which is vital for crystals used in industrial or automotive applications.

Core Function  3: Environmental Sealing for Long-Term Stability

A high-quality spacer also serves to   stabilize the crystal's internal environment  . Spacers with excellent airtightness help maintain the hermetic seal of the crystal package, preserving the inert gas (like Nitrogen) fill inside. This effectively blocks moisture and contaminants from entering, which is crucial for slowing the aging process of the crystal and ensuring long-term frequency stability.

Common Frequencies and Application Scenarios

Based on our production experience, the following HC-49/U crystal frequencies frequently require spacer adjustment for optimal performance:

In summary, adding a spacer to an HC-49/U crystal is a highly effective solution that combines frequency trimming, mechanical protection, and environmental sealing. If you are facing frequency deviation challenges with critical components like 24.576MHz or 25.000MHz crystals, this simple hardware modification can be the perfect solution.
