ST3068

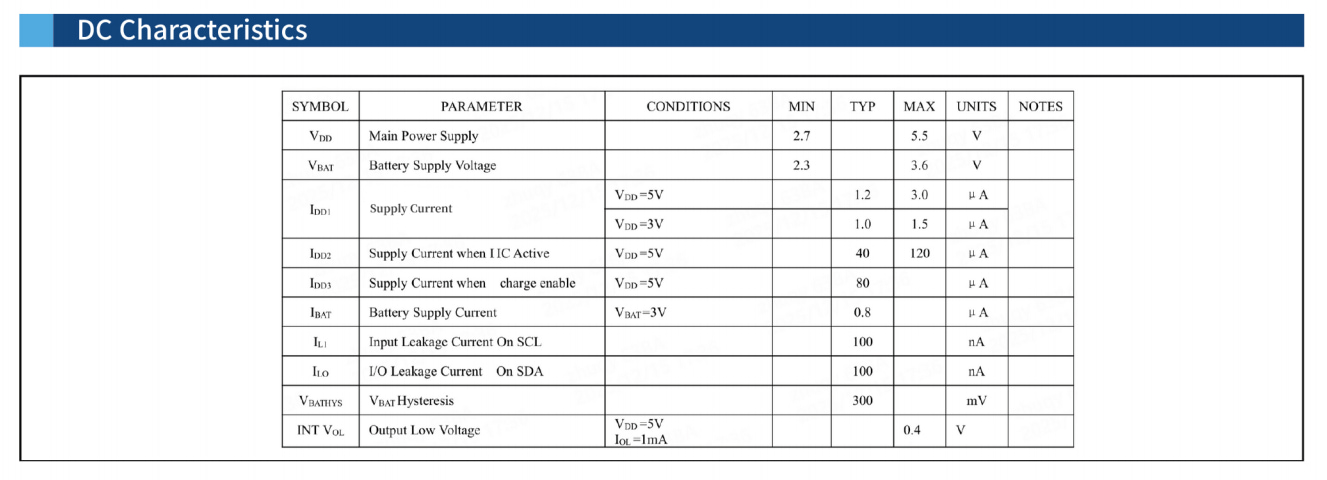

Low power consumption: 0.8μA typical (VDD=3.0V,Ta=25C).
Operating voltage:2.7V~5.5V.
Operating temperature:-40C~+85°C.
ROHS Recognized
Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process
Package Form:SOP8/TSSOP8.
Model :

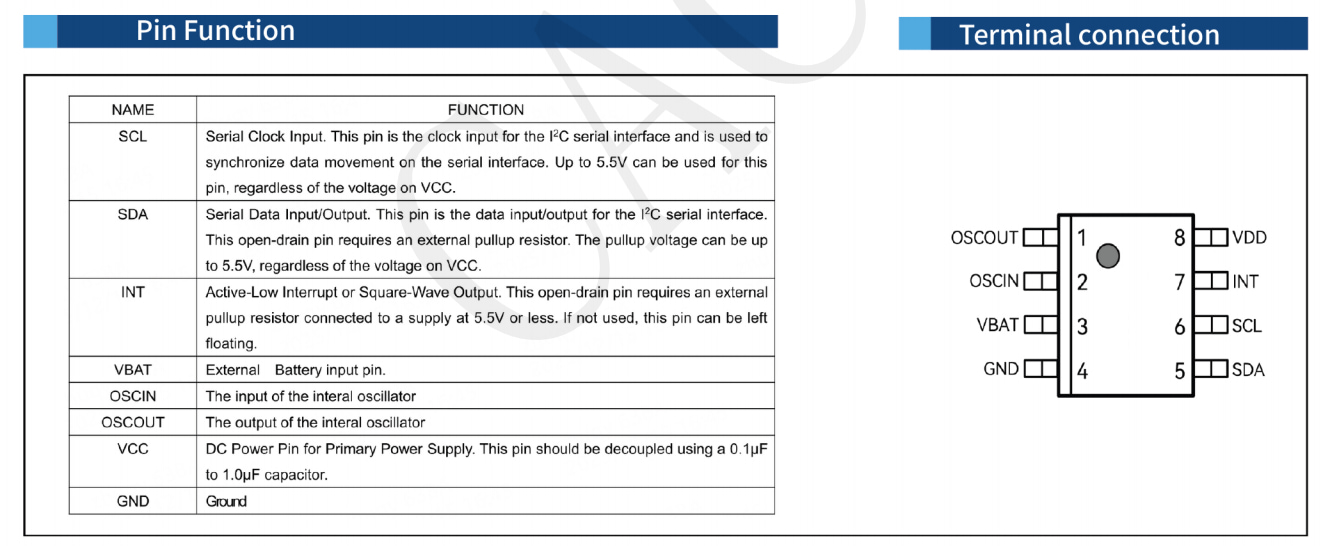

ST3068REAL TIME CLOCK IC(External Crystal Oscillator)
Internal 44-byte general-purpose SRAM
Internal three clock data write protection bits
Built-in IIC bus 0.5 seconds automatic reset function
Internal 44-byte general-purpose SRAM
Auto reload 24-bit countdown timer
Built-in clock data write-protection function
VBAT pin with support for either disposable or rechargeable
backup batteries
