ST3078
High-precision
Low power consumption: 0.8μA typical (VDD =3.0V,Ta=25C).
Operating voltage:2.7V~5.5V.
Operating temperature:-40C~+105℃.
AEC-Q100 certified
Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process
Package Form:SOP8 (208mil).
Model :

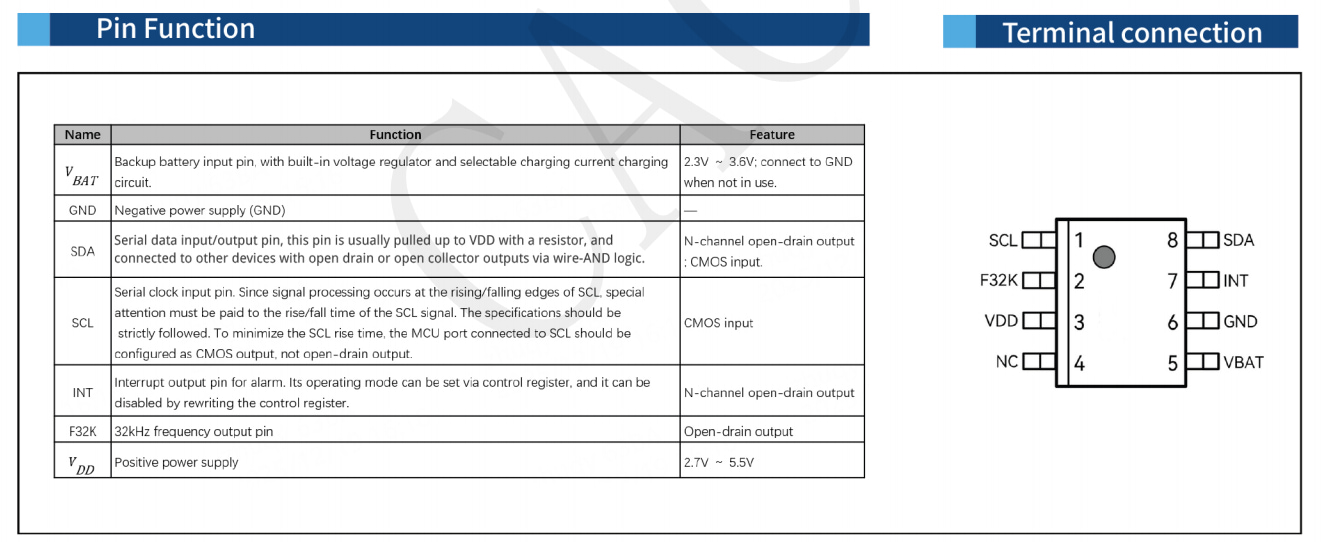

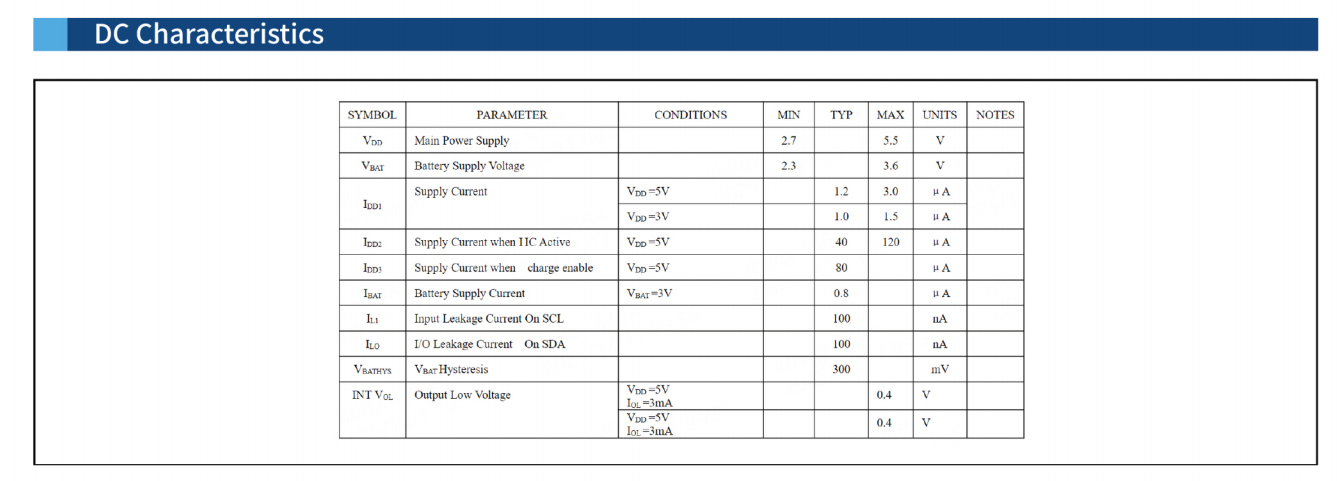

ST3078REAL TIME CLOCKIC(Built-in Crystal Oscillator) ST3078
Internal 70-byte general-purpose SRAM
High frequency accuracy:±3.8ppmat 25C.
Built-in software-controllable VBAT mode llC bus communication
disable function
Built-in IIC bus 0.5 seconds automatic reset function
Built-in 1/1024 second register
Built-in communication verification function
Built-in clock data write-protection function
