FEATURE
①Design for Application of Exceptional Frequency Stability and Timing
②Aging Performance
a.±0.05 ppb/day
b.±10 ppb/Year
c.±50 ppb/10 Years
TYPICAL APPLICATION
①Instrument Reference
②Data Communication
③Test & Measurement
④Telecom Systems
⑤GPS
Type :
AG6Model :
POC3627Package size :
36.3*27.4*18.8mmFrequency :
5.000M~120.000MOven Controlled Crystal Oscillator(OCXO) POC3627
The POC2522-MHz series by Zhejiang A-Crystal is a high-performance SMD OCXO (Oven-Controlled Crystal Oscillator) with a frequency range of 10.0MHz to 100.0MHz, featuring ±0.1ppm initial accuracy and ultra-low phase noise (-170dBc/Hz). Compact in size (25.4×22.1×13.2mm), it operates across a wide temperature range (-45℃ to +90℃), making it ideal for microwave communications, radar systems, and precision instruments. Key features include voltage-controlled frequency tuning (±0.4ppm), fast warm-up (5-minute stabilization), and low power consumption (2.0W steady-state). Compliant with RoHS standards.
1. ELECTRICAL SPECIFICATIONS
| No. | Item | Electrical Specification | Remark | |||||
| Min. | Type | Max. | Units | |||||
| OUTPUT (PIN = “R.F. OUTPUT”) | ||||||||
| 1 | Nominal Frequency | 5.000 | 120.000 | MHz | ||||
| 2 | Initial Accuracy | -0.1 | +0.1 | ppm | @ +25 ±1°C, after turn on power 30 ±5 minutes； ≦90 days following date code； VCO input at Center Voltage ±0.001V |
|||
| 3 | Waveform | Rectangular | ≦90 days following date code | |||||
| 4 | Level | CMOS | ||||||
| 5 | “1”Level | +2.4 | V | |||||
| 6 | “0” Level | +0.3 | V | |||||
| 7 | Load | 15 | PF | |||||
| 8 | Duty Cycle | 45 | 50 | 55 | % | @+2.5V | ||
| 9 | Spurious | -60 | dBc | |||||
| FREQUENCY STABILITY | ||||||||
| 10 | Ambient | ±0.05 | ±0.5 | ppb | referenced to 25°C | |||
| 11 | Aging | Daily | ±0.05 | ±0.2 | ppb | After 30 days. | ||
| yearly | ±10 | ±40 | ppb | |||||
| 10 years | ±50 | ±200 | ppb | |||||
| 12 | Voltage | -0.1 | +0.1 | ppb | ±5% change | |||
| 13 | Short term | 0.005 | Ppb/s | root Allan variance | ||||
| 0.01 | Ppb/10s | |||||||
| 14 | Warm-up | -20 | +20 | ppb | in 5 minutes @ +25 ±1°C, referenced to 1 hour | |||
| 15 | Retrace | -5 | +5 | ppb | After 60 minutes from on, following 24 hours, minimum on time, and 24 hours maximum off time. At constant temperature and voltage. Referenced to frequency at off time. | |||
| 16 | Phase Noise | @1Hz | -90 | dBc/Hz | Refer to Table 1 : Ordering Information | |||
| @10Hz | -120 | dBc/Hz | ||||||
| @100Hz | -135 | dBc/Hz | ||||||
| @1KHz | -145 | dBc/Hz | ||||||
| @10KHz | -155 | dBc/Hz | ||||||
| @100KHz | -160 | dBc/Hz | ||||||
| ELECTRICAL FREQUENCY ADJUSTMENT (PIN = “VCO INPUT”) | ||||||||
| 17 | Tuning Range | -0.25 | -0.15 | ppm | Referenced to frequency at nominal Center Voltage | |||
| +0.15 | +0.25 | ppm | ||||||
| 18 | Control Voltage | 0 | +2.8 | V | ||||
| 19 | Slope | Positive | ||||||
| 20 | Center Voltage | +1.4 | V | |||||
| 21 | Linearity | -10 | +10 | % | ||||
| 22 | Input Impedance | 50 | KΩ | |||||
| INPUT POWER (PIN = “+VDC”) | ||||||||
| 23 | Voltage | +4.75 | +5 | +5.25 | V | |||
| 24 | Current | Steady State | 2.5 | W | @ +25°C | |||
| During Warm-Up | 1.75 | A | @ trun on | |||||
| REFERENCE VOLTAGE (PIN=”REFERENCE VOLTAGE”) | ||||||||
| 25 | Voltage | +2.716 | +2.8 | +2.884 | V | Over Operating temperature range | ||
| 26 | Load | 9 | KΩ | |||||
| 27 | Temperature Stability | -0.5 | +0.5 | mV | ||||
| ENVIRONMENTAL | ||||||||
| 28 | Operable Temperature | -10 | +70 | ℃ | ||||
| 29 | Storage Temperature | -40 | +85 | ℃ | ||||
| 30 | Vibration (non-operating) | MIL-STD-202, Method 201 | 0.06” Total p-p, 10 to 55 Hz | |||||
| 31 | Shock (non-operating) | MIL-STD-202, Method 213, Test Condition J | 30g, 11ms, half-sine | |||||
| 32 | Package type | 36.3*27.4*18.8 | ||||||
| Note : not all combination of options are available. Other specifications may be available upon request. | ||||||||

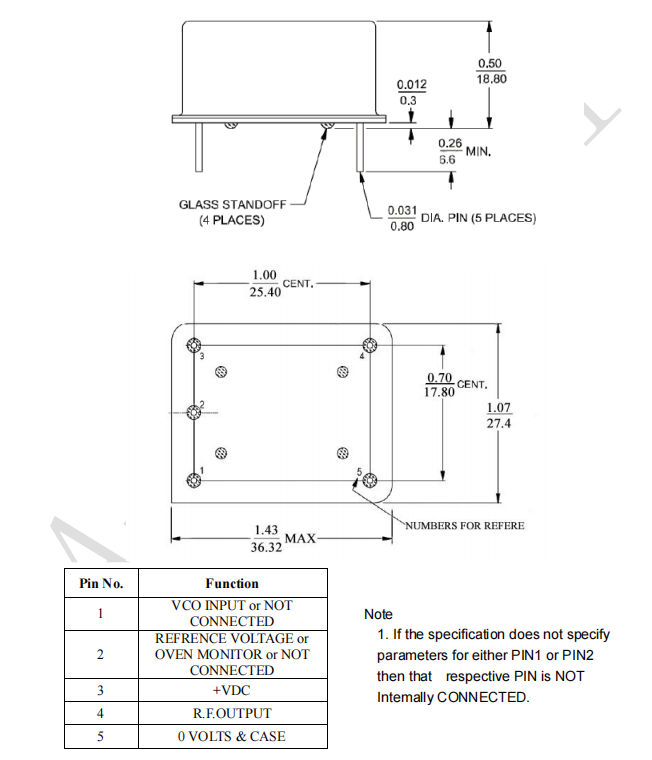

2. Dimension (Unit: mm)
3.For more FAQs and other services, please click on the image below to view.
