Home Oven Controlled Crystal Oscillator (OCXO)

Oven Controlled Crystal Oscillator(OCXO) POC2522

Oven Controlled Crystal Oscillator(OCXO) POC2522

FEATURE

①Dimension 25.4 x 22.1 x 13.2mm, pypical

②Low Phase Noise

③Small SMD Package

④Tight Frequency Stability

⑤Low Power Consumption

⑥Fast Warm-up Time

⑦Electrical Frequency Tuning Input

⑧Reference Voltage Output

⑨RoHS-Compliant (lead-free)



TYPICAL APPLICATION

①Instrument Reference

②Microwave Communication

③Clock Reference for Microwave Signal Source

④Test & Measurement

⑤Telecom Systems

⑥Radar Systems

  • Type :

    AG3
  • Model :

    POC2522
  • Package size :

    25.4*22.1*13.2mm
  • Frequency :

    10.000M~100.000M

Oven Controlled Crystal Oscillator(OCXO) POC2522

Zhejiang A-Crystal presents the POC3627 series SMD OCXO crystal oscillator with a frequency range of 5.0M–120.000MHz, featuring exceptional frequency stability (±0.05ppb/day) and ultra-low aging (±10ppb/year). With CMOS output and phase noise as low as -160dBc/Hz@100kHz, it is ideal for high-precision timing applications such as instrumentation reference, data communication, and GPS systems. Operating temperature ranges from -10°C to +70°C, with voltage-controlled frequency adjustment (±0.25ppm). Compact dimensions of 36.3×27.4×18.8mm and compliance with MIL-STD environmental reliability standards ensure robust performance. Customization options are available to meet stringent industrial requirements.

1. ELECTRICAL SPECIFICATIONS

No. Item Electrical Specification Remark
Min. Type Max. Units
OUTPUT (PIN = “R.F. OUTPUT”)
1 Nominal Frequency 10.000   100.000 MHz
2 Initial Accuracy -0.1   +0.1 ppm @ +25 ±1°C,after turn on power 60 minutes,Vco=+5V
3 Waveform     Sine wave
4 Level     +8 +10 +12 dBm
5 Load       50   Ω
6 Harmonics         -30 dBc
7 Spurious         -100 dBc
FREQUENCY STABILITY
8 Ambient ±5   ±100 ppb referenced to 25°C
9 Aging Daily -0.5   +0.5 ppb after 30 days of continuous operation.
yearly -50   +50 ppb
10years -0.3   +0.3 ppm
10 Voltage -0.1   +0.1 ppb ±5% change
11 Short term   0.002   ppb root Allan variance for τ=1 sec
12 Load -1   +1 ppb ±5% change
13 Warm-up -50   +50 ppb in 5 minutes @ +25 ±1°C, referenced to 1 hour
14 Phase Noise   Option A Option B Option C   Refer to Table 1 : Ordering Information
@1Hz -105 -110 -115 dBc/Hz
@10Hz -135 -140 -142 dBc/Hz
@100Hz -155 -155 -155 dBc/Hz
@1KHz -165 -165 -165 dBc/Hz
@10KHz -170 -170 -170 dBc/Hz
@100KHz -170 -170 -170 dBc/Hz
@1MHz -170 -170 -170 dBc/Hz
ELECTRICAL FREQUENCY ADJUSTMENT (PIN = “VCO INPUT”)
15 Tuning Range ±0.4     ppm Referenced to frequency at nominal Center Voltage
16 Control Voltage +0.5   +9.5 V
17 Slope   Positive
18 Center Voltage   +5.0   V
19 Linearity -10   10 %
* Sufficient to adjust the oscillator to nominal frequency for 10 years. Some unit will have ±0.7ppm tuning range.
INPUT POWER (PIN = “+VDC”)
20 Voltage +11.4 +12 +12.6 V
21 Current Steady State     2.0 W @ +25°C, operating -20°C ~ +70°C
    2.3 @ +25°C, operating -40°C ~ +85°C
22 During Warm-Up     400 mA @ +25°C, operating -20°C ~ +70°C
    500 @ +25°C, operating -40°C ~ +85°C
REFERENCE VOLTAGE (PIN = "REFERENCE VOLTAGE")
23 Voltage     +9.25 +9.5 +9.75 V
24 Source Resistance         100 Ω
25 Load Impedance     10     KΩ
ENVIRONMENTAL
26 Operable Temperature     -45   +90
27 Storage Temperature     -50   +95
28 Humidity     MIL-STD-202, Method 103 Test Condition A   95% RH @ +40°C,non-condensing,240 hours
29 Vibration (non-operating)     MIL-STD-202, Method 201   0.06” Total p-p, 10 to 55 Hz
30 Shock (non-operating)     MIL-STD-202, Method 213, Test Condition J   30g, 11ms, half-sine
31 Package type     25.4*22.1*13.2
Note 1: Output maintained over this temperature range. Other requirements of this specification may not be met when operating outside the temperature range in -40~85.
Note 2: Test conditions: VDC = +12 V; VCO = +5 V; at +25 ± 3°C unless otherwise identified.

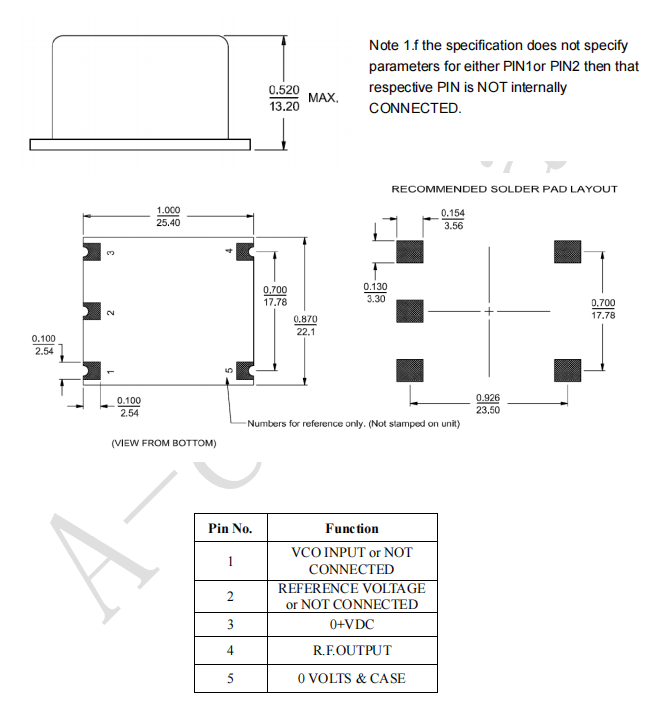

2. Dimension      (Unit: mm)

OCXO 25.4*22.1*13.2mm
