Home Oven Controlled Crystal Oscillator (OCXO)

Oven Controlled Crystal Oscillator(OCXO) POC2020

Oven Controlled Crystal Oscillator(OCXO) POC2020

FEATURE

①Dimension 20.6 x 20.6 x 11mm, pypical

②SC Cut Crystal.



TYPICAL APPLICATION

①SDH/SONET, Telecommunication base station

②Test and measurement equipment

③Synthesizer, Digital switch, Reference Timing Circuit

  • Type :

    AG4
  • Model :

    POC2020
  • Package size :

    20.6*20.6*11mm
  • Frequency :

    10.000M~100.000M

Oven Controlled Crystal Oscillator(OCXO) POC2020

The POC2020-MHz series launched by Zhejiang A-Crystal is a high-performance SMD packaged oven-controlled crystal oscillator (OCXO) using SC-cut crystals, with a size of 20.6×20.6×11mm. The product has a nominal frequency range of 10.00~100.00MHz, excellent frequency stability of ±10ppb (operating temperature range 30°C to +70°C), and excellent phase noise performance, up to -150dBc/Hz at 10kHz offset. The product supports HCMOS output, standard load 15pF, operating voltage range 4.75~5.25V, and also provides a 3.3V voltage customization option. Its voltage control function can achieve a frequency adjustment range of ±0.5ppm, and the control voltage is 0~4V. This series of products is particularly suitable for application scenarios with strict timing requirements such as SDH/SONET systems, communication base station equipment, and high-precision test and measurement instruments.

1. ELECTRICAL SPECIFICATIONS

No. Item Electrical Secification Remark
Min. Type Max. Units
1 Nominal Frequency 10.000   100.000 MHz
2 Waveform   Rectangular     Sine wave output is not available. Consult factory for more information
3 Level HCMOS
4 “1”Level 3.5     V
5 “0”Level     +0.5
6 Load   15   PF
7 Duty cycle 45 50 55 % @+2.0V
8 Spurious     -60 dBc
9 Frequency Stability  Ambient -10   +10 ppb -30°C to +70°C, referenced to +25°CRefer to Freq. Stability Vs Temp. Range table.
10 Aging -0.5   +0.5 ppb Per day,at time of shipment
11 Daily -0.5   +0.5 ppb
12 Yearly -50   +50 ppb
13 10 Yearly -0.3   +0.3 ppm
14 Voltage -0.5   0.5 ppb ±5% Change
15 Warm-up -50   +50 ppb In 3 minutes @ +25°C, referenced to 1 hour
16 Phase Noise @10Hz     -115 dBc/Hz
@100Hz     -135 dBc/Hz
@1KHz     -145 dBc/Hz
@10KHz     -150 dBc/Hz
Electrical Frequency Adjustment
17 Range       -0.5 ppm VCO @ 0 V
    0.5       VCO @ +4.0 V
18 Control Voltage   2 4 V
19 Slope   Positive
20 Input impedance 100     KΩ
21 Input Power Voltage +4.75 +5.0 +5.25 V 3.3V input voltage is available. Consult factory for control voltage and output level.
22 Current -10   500 mA @ turn on
23 Steady state     1 W @+2°C
24 Reference Voltage +3.8 +4.0 +4.2 V
25 Load 9     KΩ
26 Package type 20.6*20.6*11
Note: not all combination of options are available. Other specifications may be available upon request

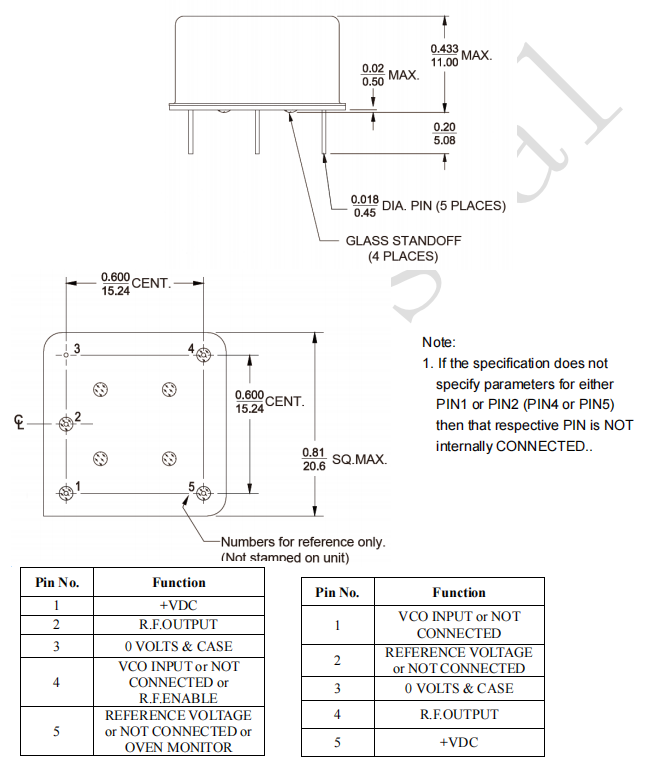

2. Dimension      (Unit: mm)

OCXO 20.6 x 20.6 x 11mm



3.For more FAQs and other services, please click on the image below to view.
