ST8565

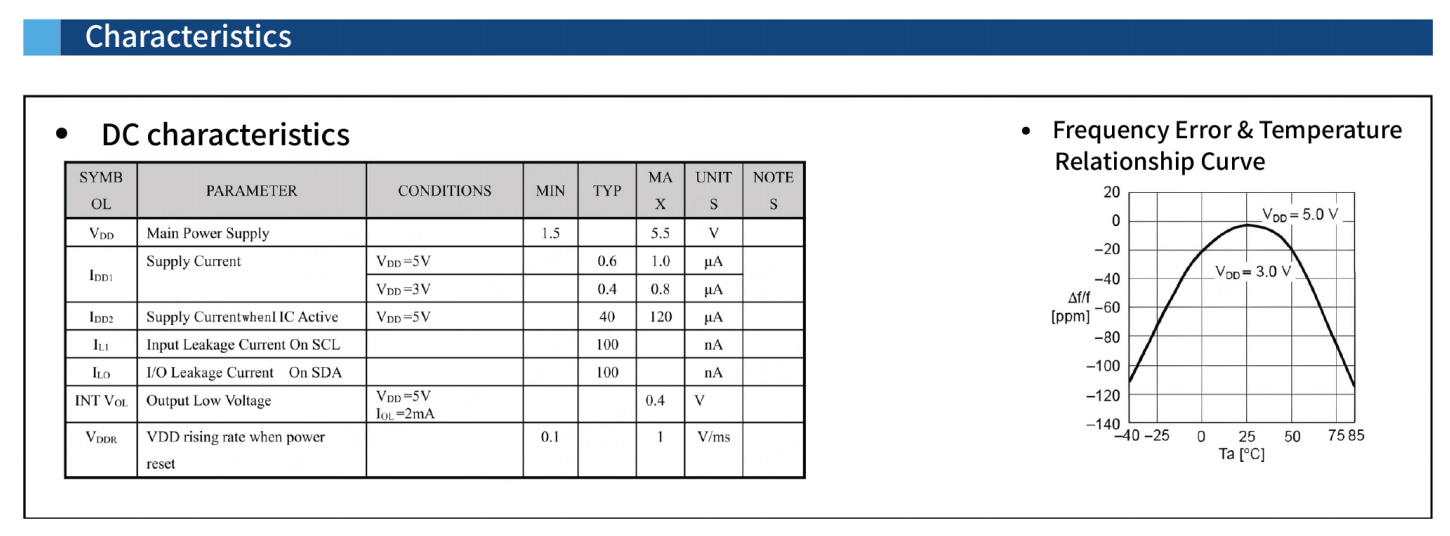

Low power consumption: 0.4μA typical (VDD =3.0V,Ta=25°C).
Operating voltage: 1.5V~5.5V; Clock voltage:1.0V~5.5V.
Operating temperature:-40C~+85°C.
Built-in crystal, High accuracy:±2ppm at 25℃.
ROHS Recognized
Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process
Package Form:2012(2.00mmx1.25mmx0.75mm).
Model :

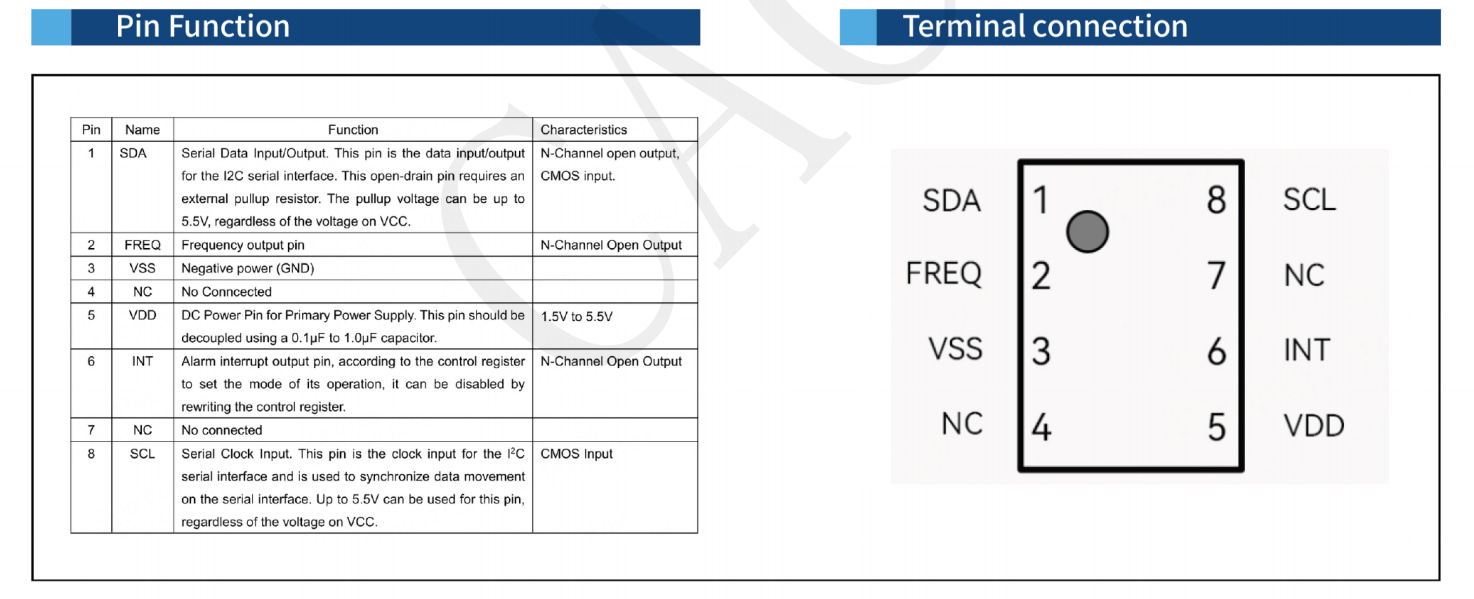

ST8565REAL TIME CLOCK IC(Built-in Crystal Oscillator) ST8565
Built-in a single timer/alarm interrupt output
Periodic Frequency Interrupt Output Pin FREQ
Built-in IIC bus 0.5 seconds automatic reset function
Built-in 4-byte alarm registers for day,week,hour and minute.
Auto-reload 8-bit countdown calculator
Built-in clock data write-protection function
Built-in power-on reset circuit
Built-in power supply regulator
