ST8800
Low power consumption: 0.6μA typical (VDD=3.0V,Ta=25°C).
Operating voltage: 2.5V~ 5.5V; Timekeeping:1.5V~5.5V.
Operating temperature:-40°C~+125°C.
AEC-Q100 certified
Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process
Package Form:3225(3.2mmx2.5mmx0.75mm).
Model :
ST8800REAL TIME CLOCK IC(Built-in Crystal Oscillator) ST8800
Built-in 70-byte general-purpose SRAM

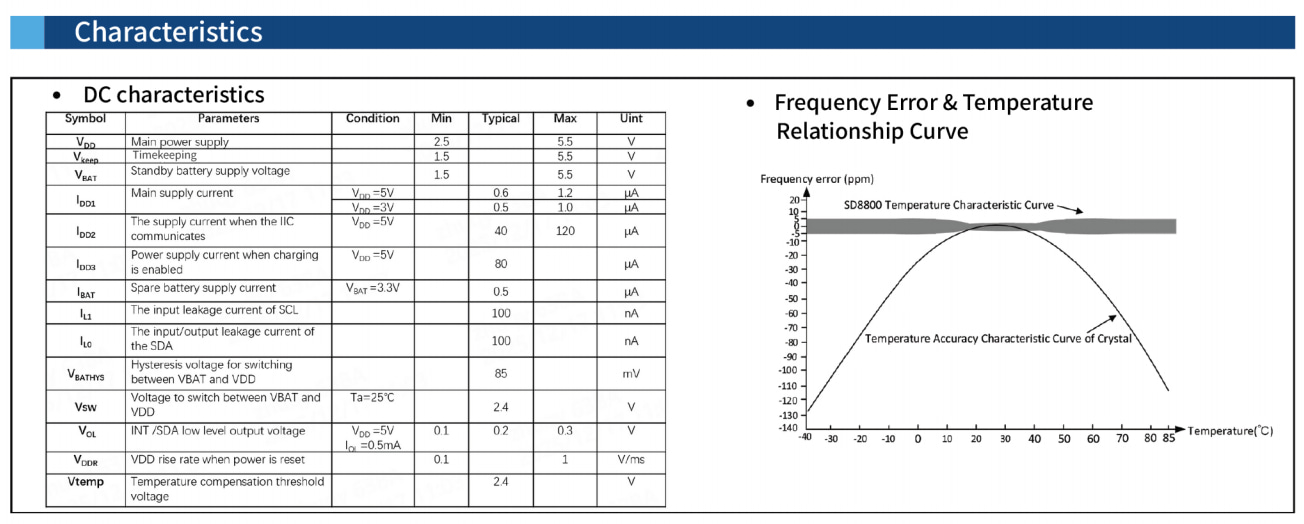

high precision timing function in a wide temperature range:-40℃
~+85°C<±5ppm;+86°℃ ~+105C<±10ppm;+106 ℃ ~+125℃<±20ppm.
disposable or rechargeable backup battery input pin VBAT
Built-in IIC bus 0.5 seconds automatic reset function
Built-in 1/1024 second register
Built-in communication verification function
Built-in clock data write-protection function
For more FAQs and other services, please click on the image below to view.
ST2058 Low power consumption: 1μAtypical (VDD =3.0V,Ta=25°C). Operating voltage:1.3V~5.5V. Operating temperature:-40°C~+125C. Passed AEC-Q100&AEC-Q200Certification Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Built-in IIC bus 0.5 seconds automatic reset function Chip pin ESD>4KV CMOS Process Package Format:SOP8/MSOP8/DFN3x3-10.
Read More
ST2068 Low power consumption: 1μA typical (VDD =3.0V,Ta=25°C). Operating voltage:1.5V~5.5V. Operating temperature:-40℃~+85C. ROHS Recognized Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Chip pin ESD>4KV CMOS Process Package Form:SOP8/TSSOP8.
Read More
ST3068 Low power consumption: 0.8μA typical (VDD=3.0V,Ta=25C). Operating voltage:2.7V~5.5V. Operating temperature:-40C~+85°C. ROHS Recognized Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Chip pin ESD>4KV CMOS Process Package Form:SOP8/TSSOP8.
Read More
ST3078 High-precision Low power consumption: 0.8μA typical (VDD =3.0V,Ta=25C). Operating voltage:2.7V~5.5V. Operating temperature:-40C~+105℃. AEC-Q100 certified Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Chip pin ESD>4KV CMOS Process Package Form:SOP8 (208mil).
Read More
ST8190 Low power consumption: 0.4μA typical (VDD=3.0V,Ta=25°℃). Operating voltage: 1.5V~5.5V; Clock voltage:1.2V~5.5V. Operating temperature:-40C~+105C. ROHS Recognized Standard IIC bus interface, maximum speed 400KHz(4.5V~5.5V). Chip pin ESD>4KV CMOS Process Package Form:SOP8/TSSOP8.
Read More
ST8200 Low power consumption: 0.6μA typical(Ta=25C). Operating voltage:1.8V~5.5V; Clock voltage: 1.2V~5.5V. Operating temperature:-40C~+105°C. ROHS Recognized Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Chip pin ESD>4KV CMOS Process Package Form:SOP8(150mil).
Read More
ST8563 Low power consumption: 0.45μA typical (VDD =3.0V,Ta=25C). Operating voltage: 1.5V~5.5V;Clock voltage:1.0V~5.5V. Operating temperature:-40°C~+85°C. Passed AEC-Q100 Certification Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V). Built-in IIC bus 0.5 seconds automatic reset function Chip pin ESD>4KV CMOS Process Package Form:SOP8/MSOP8/TSSOP8.
Read More
Features ① 24 Hours Holdover < 1.5uS, ±10℃ temperature change ② 1pps input and 1pps output for 1pps synchronization ③ Discipline to 1ns in phase and <10-12 in frequency ④ 1 Second continuous phase measurement and report system, resolution ≤1ns ⑤ ToD ( Time of Day ) ⑥ RS232 digital interface ⑦ 5MHz, 10MHz, CMOS output ⑧ -10℃ ~ 70℃ operating ⑨ Proprietary adaptive algorithm Application ① 5G Telecommunication, Base Station ② Smart Power Grid ③ Test and measurement equipment
