ST8810

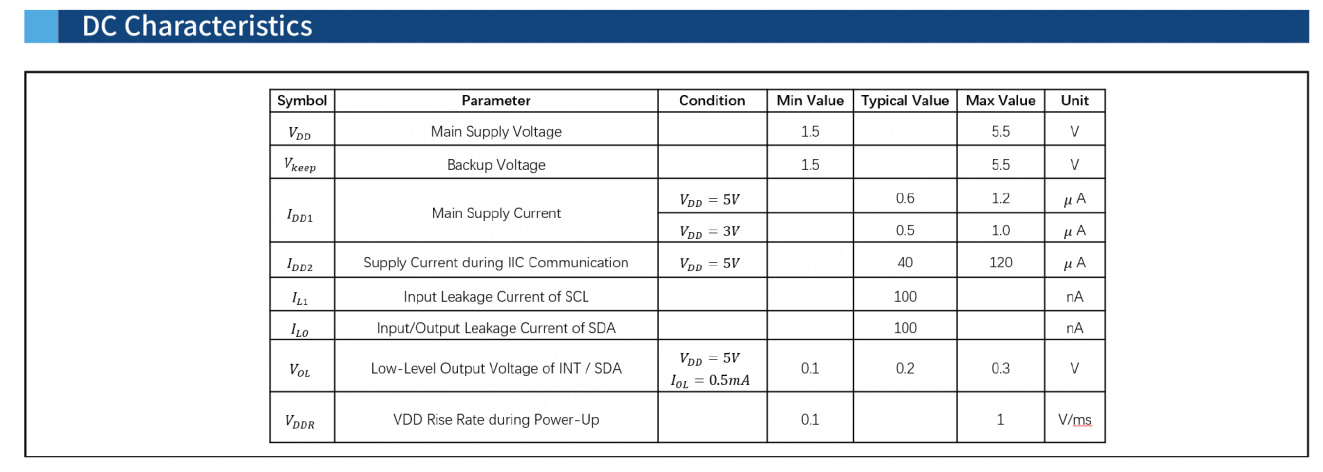

Low power consumption: 0.6μA typical (VDD =3.0V,Ta=25°C).
Operating voltage: 1.5V~5.5V;Timekeeping:1.5v~5.5V.
Operating temperature:-40°C~+105C.
ROHS Recognized
Standard IIC bus interface, maximum speed 400KHz(4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process

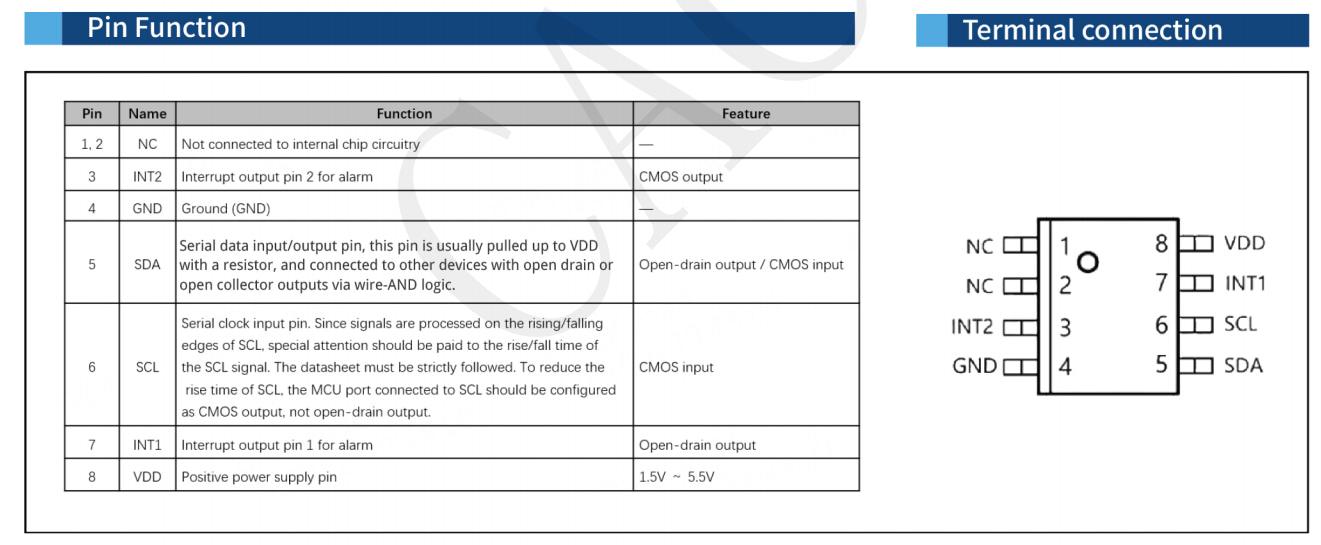

Package Form:SOP8.
Model :
ST8810REAL TIME CLOCKIC(Built-in Crystal Oscillator) ST8810
Internal 70-byte general-purpose SRAM
Built-in 3-byte alarm data registers
Built-in IIC bus 0.5 seconds automatic reset function
Built-in 1/1024 second register
Built-in communication verification function
Built-in clock data write-protection function
