ST8827
Low power consumption:0.6μA typical (VDD =3.0V,Ta=25C).
Operating voltage:2.2V~5.5V;Timekeeping:1.5v~5.5V.
Operating temperature:-40C~+105C.
ROHS Recognized
Standard IIC bus interface, maximum speed 400KHz (4.5V~5.5V).
Chip pin ESD>4KV
CMOS Process

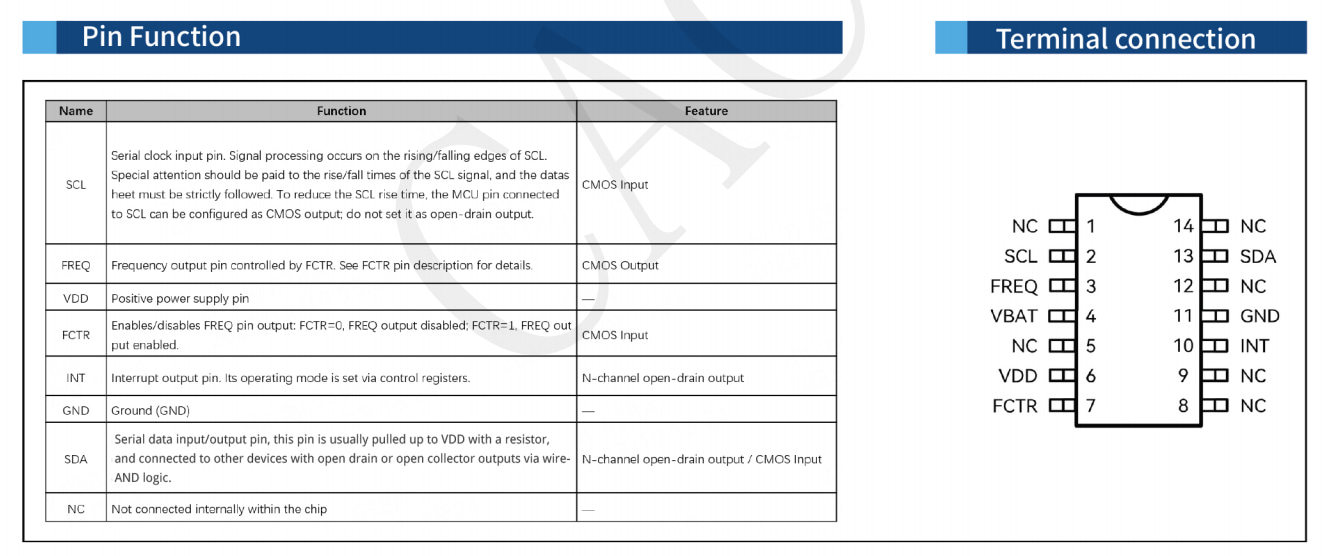

Package Form:SOP14(198mil).
Model :
ST8827REAL TIME CLOCKIC(Built-in Crystal Oscillator) ST8827
Internal 70-byte general-purpose SRAM

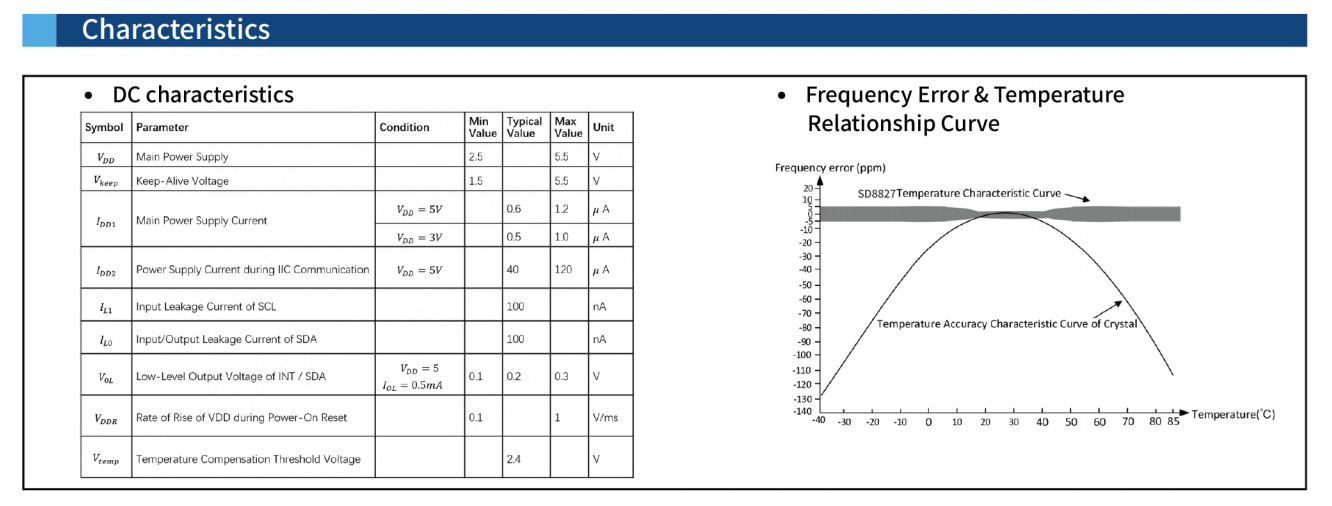

high-precision timing within A wide temperature range:
25°C<1ppm(Class A),-40C to +85°C<5ppm,+86°C to
+105C<10ppm.
Built-in IIC bus 0.5 seconds automatic reset function
Built-in 1/1024 second register
Built-in communication verification function
Built-in clock data write-protection function
