ST8908

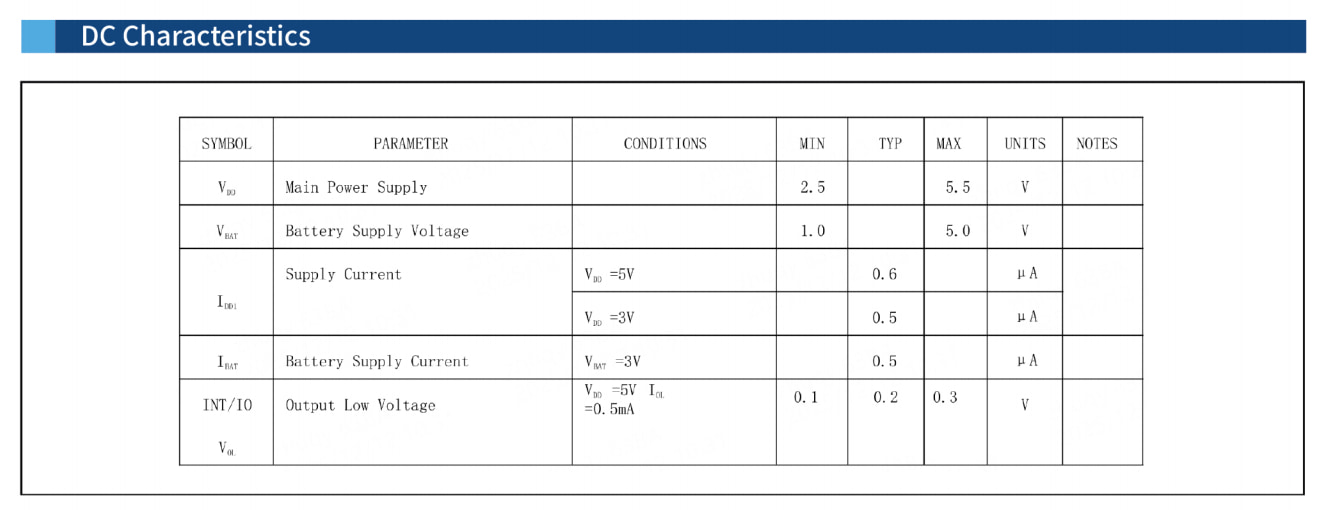

Low power consumption: 0.6μA typical (Ta=25C).
Operating voltage:2.5V~5.5V.
Operating temperature:-40°C~+105C.
Accuracy at room temperature is<±5ppm.
ROHS Recognized
3-wire serial interface, up to 2MHz.
Chip pin ESD>4KV
CMOS Process
Package Form:SOP8.
Model :

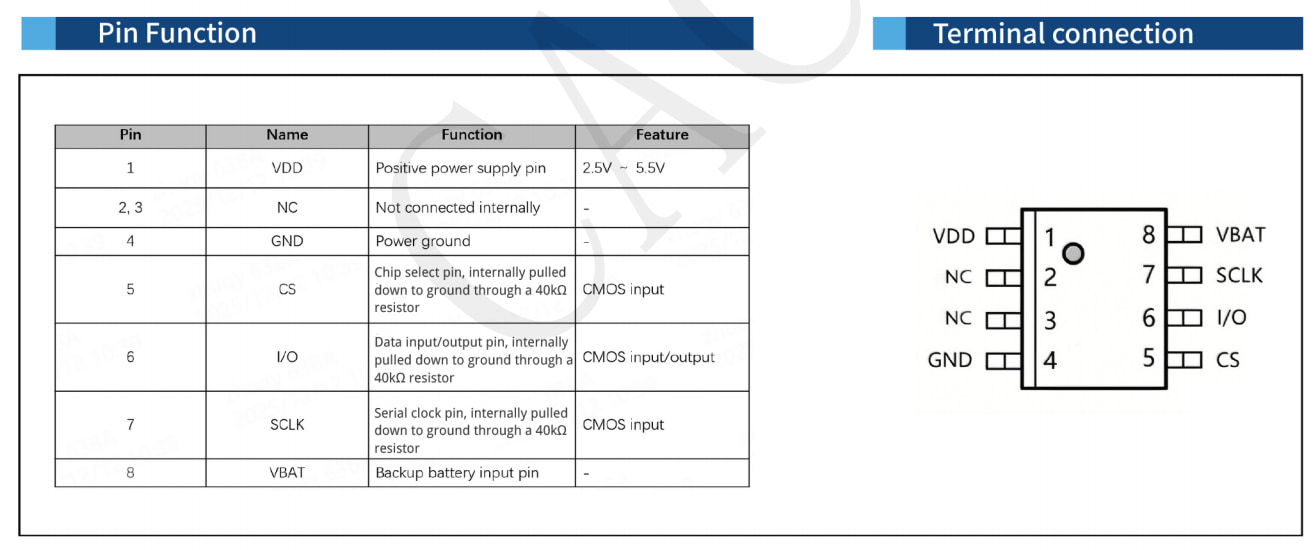

ST8908REAL TIME CLOCKIC(Built-in Crystal Oscillator) ST8908
Built-in Battery Charging:VBAT selectable charging voltage of 3.3V or 4.2V.
Digital Calibration Function
Pass 4 kV EFT Interference Test
Battery Voltage & Temperature Measurement
Built-in Communication Verification Function
Built-in 31-Byte General-Purpose SRAM Registers
Built-in clock data write-protection function
Built-in8-Byte ID
