ST8902

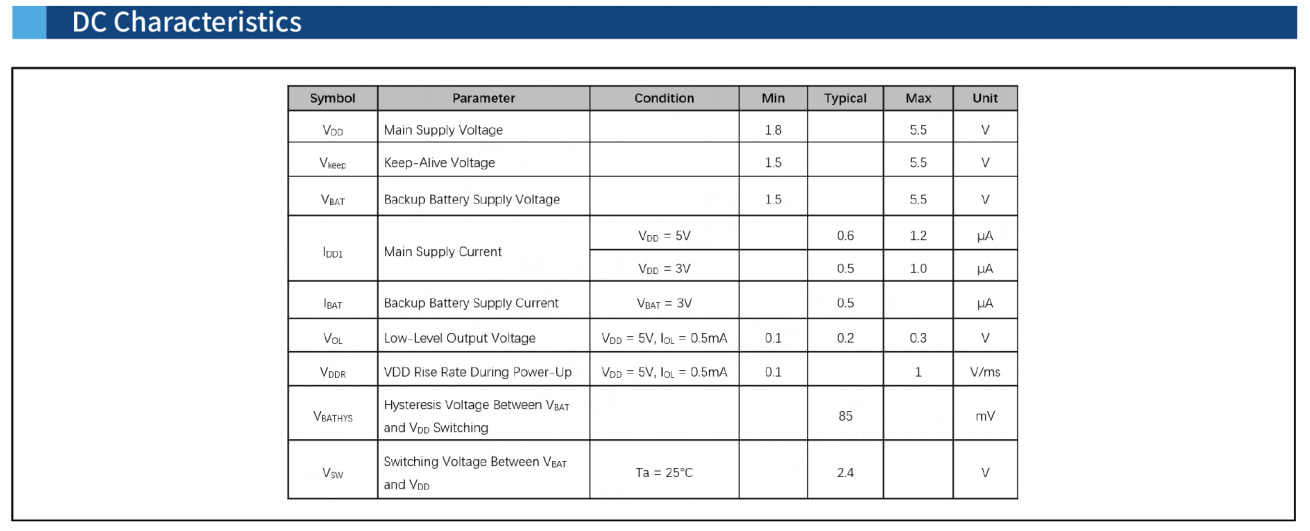

Low power consumption:0.6μA typical(Ta=25C).
Operating voltage: 1.8V~5.5V; Clock voltage:1.5V~5.5V.
Operating temperature:-40C~+105℃.
ROHS Recognized
3-wire serial interface, up to 2MHz.
Chip pin ESD>4KV
CMOS Process

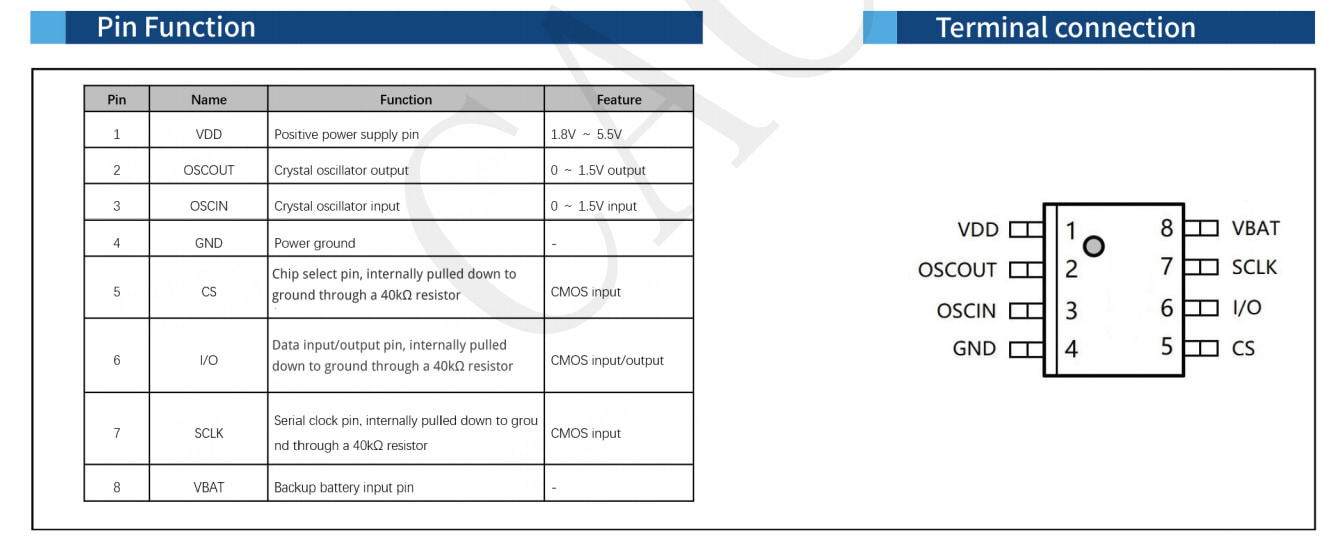

Package Form:SOP8
Model :
ST8902REAL TIME CLOCK IC(External Crystal Oscillator) ST8902
Built-in Battery Charging:VBAT selectable charging voltage of 3.1V or 4.1V.
Digital Calibration Function
Pass 4 kV EFT Interference Test
Battery Voltage & Temperature Measurement
Built-in Communication Verification Function
Built-in 31-Byte General-Purpose SRAM Registers
Built-in clock data write-protection function
Built-in 8-Byte ID
